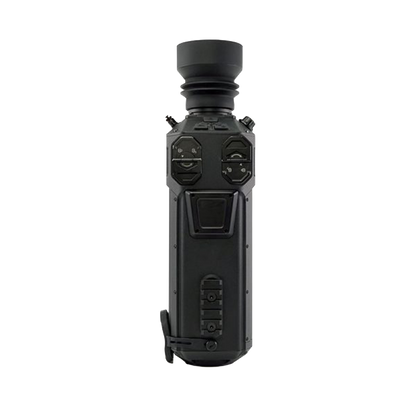

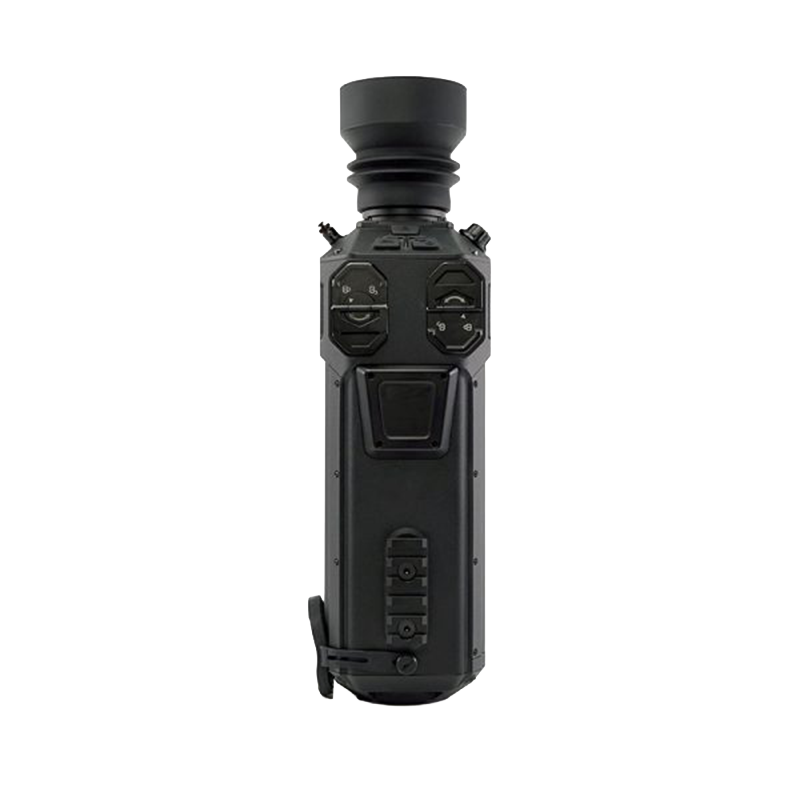

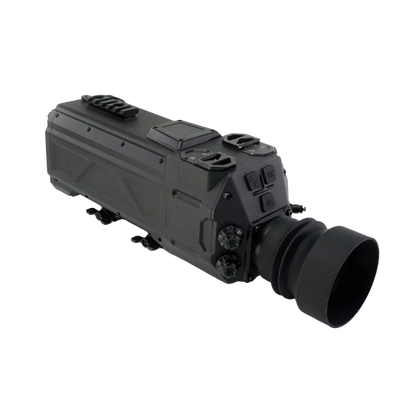

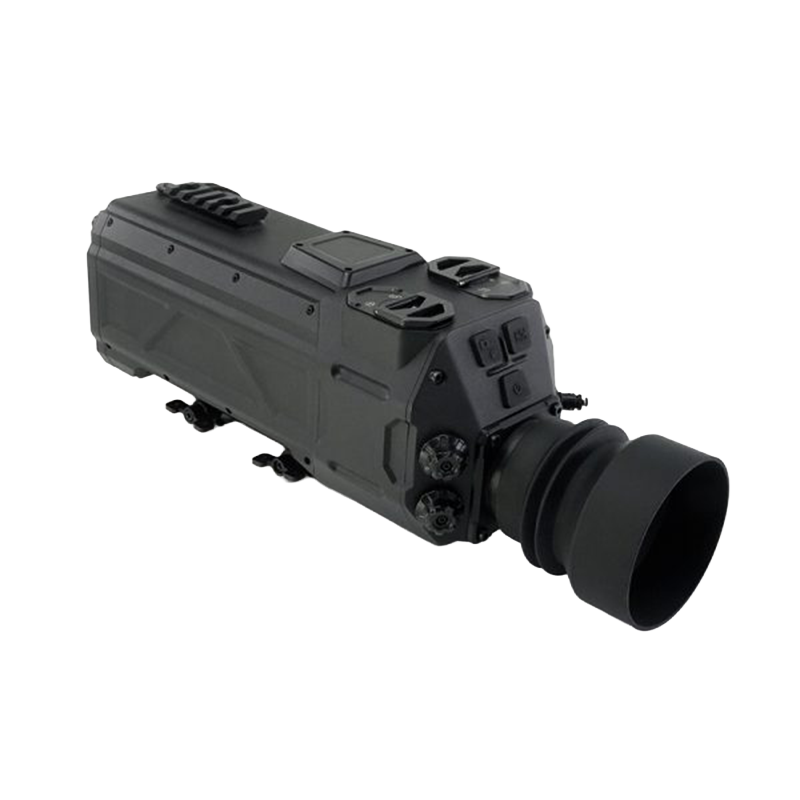

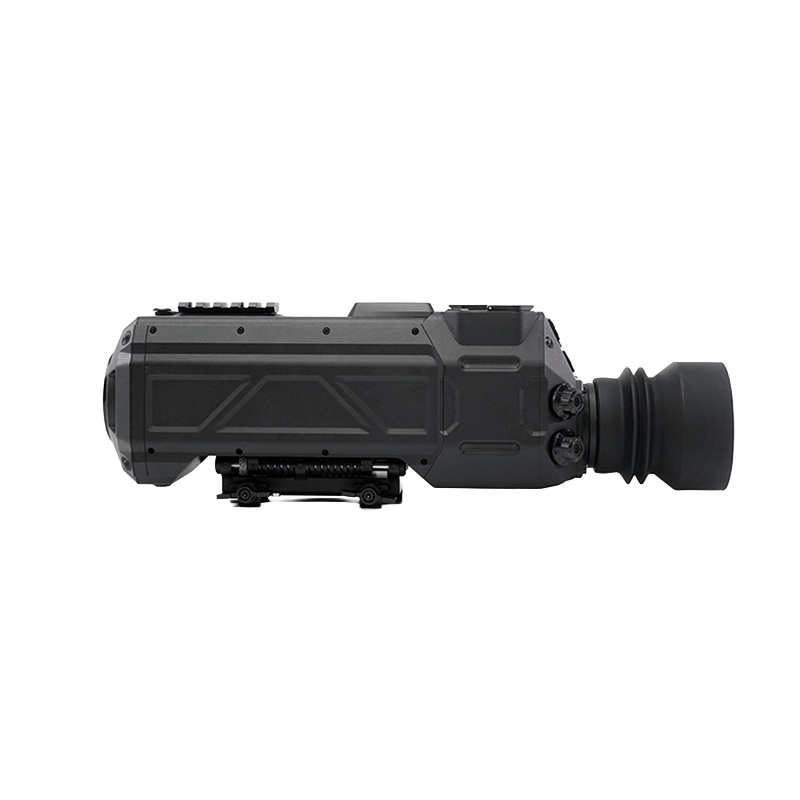

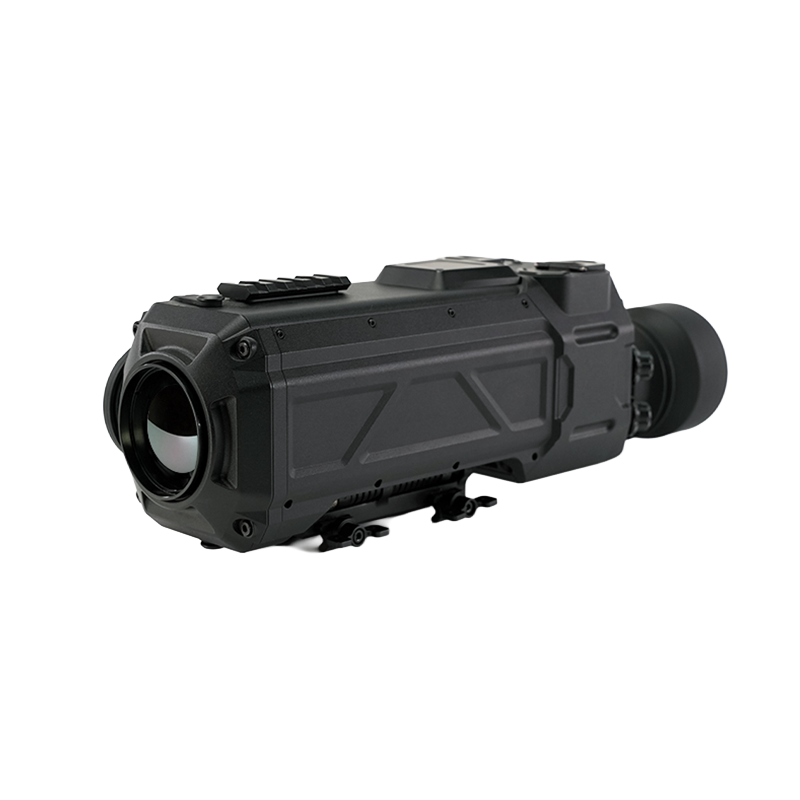

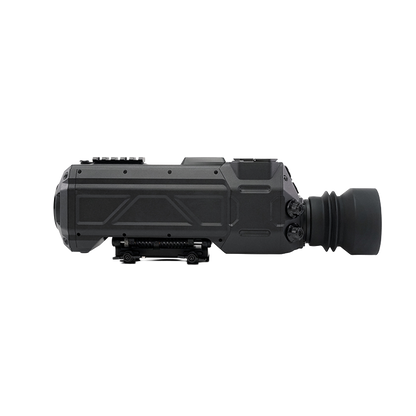

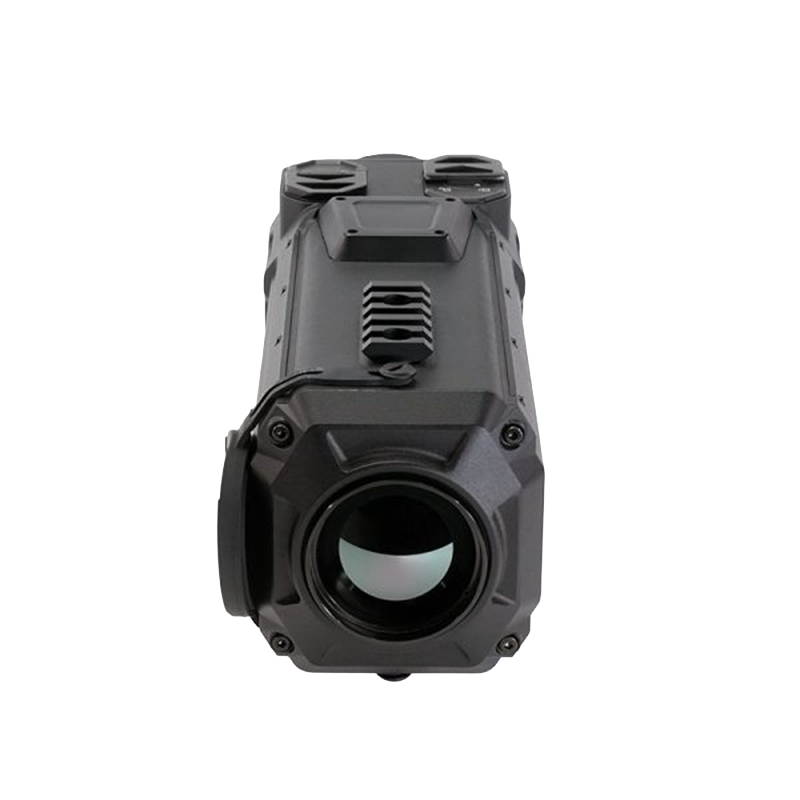

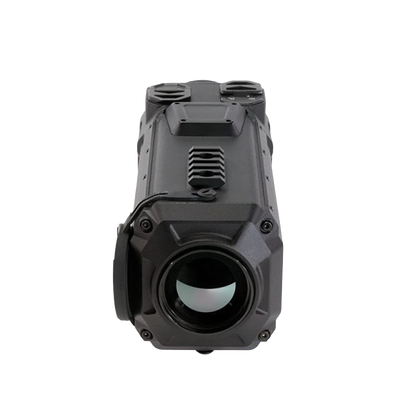

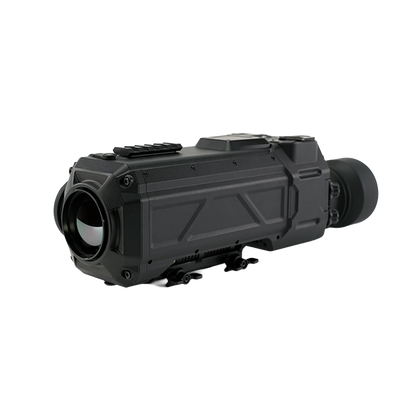

GODZILLA-EC Cooled MWIR Clip-On Thermal Scope
GODZILLA-EC Cooled MWIR Clip-On Thermal Scope
Couldn't load pickup availability
The GODZILLA-EC is a cooled medium-wave forward clip-on scope that delivers clear images in challenging environments. It supports external rangefinding and ballistic calculations, hot-swappable batteries, and the ability to track the heat signature of projectiles. When paired with an optical scope it offers up to 35x magnification, making it ideal for remote mission execution.
Key Features
Hot-cooling module – It adopts the HOT F4 cooling module, which features long service life, fast startup, and low power consumption.
Precise aiming assistance – It integrates an intelligent ballistic calculation algorithm to accurately calculate aiming correction points.
High impact resistance – It can withstand impacts of up to 1500G.
Ultra-long recognition distance – It is equipped with a 250 mm ultra-high magnification optical lens combined with infrared cooled imaging, enabling human recognition at a distance of up to 2,300 m.
Ballistic trajectory tracking – It can realize real-time observation of the bullet's trajectory and impact point.
Hot-swappable battery – It supports battery replacement without power interruption.
Specifications:
| Thermal Channel | |
| Sensor Resolution | 640×512 pixels, 15μm |
| Frame Rate | 50Hz |
| Spectral band | 3.7μm to 4.8μm |
| Cooldown Time | 3 minutes |
| Focal Length | 250mm/F4 |
| FOV (H×V) | 2.2°×1.8° |
| System Magnification | 1× |
| Laser Rangefinder (External Optional) | |
| Laser Type | 1535nm/Class1/Eye-safe |
| Range Capability | 10~3000m (2.3m×2.3m target) |
| Accuracy | ±1m |
| Advanced Functions | |
| Ballistic Calculation | ✓ |
| Battery Hot SWAP | ✓ |
| AI Recognition | Human, Vehicles |
| Display | |
| Display | 0.37inch OLED |
| Resolution | 1280×1024 |
| Storage | |
| Standard On Board | 128GB |
| Assembly | |
| Min. baseline Height | 38.5mm |
| Weapon Mounting | MIL-1913 mount, fits picatinny rail |
| Physical | |
| Dimensions (W × H × D) | 303mm×94mm×104mm |
| Weight | ≤2180g (no battery) |
| Power Supply | |
| Battery Type | 4 × 18650 lithium batteries |
| Battery life | >4.5h / >9h (with hot swap) |
| Interfaces | |
| External Power Supply | 12~24V DC |
| Video Output | UVC |
| Wired Data | USB, RS232 |
| Wireless | Wi-Fi, Bluetooth |
| Environmental | |
| Shock Resistance | 1500g, 0.3ms, 1Hz |
| Immersion | IP67 |
